Rivet Tool 3/16" 20V W/ Battery 2.0AH Dewalt

Original price $349.95 - Original price $349.95
Original price
$349.95
$349.95 - $349.95
Current price $349.95

Model: DCF403D1

Rivet Tool 3/16" 20V W/ Battery 2.0AH Dewalt

Product Overview:

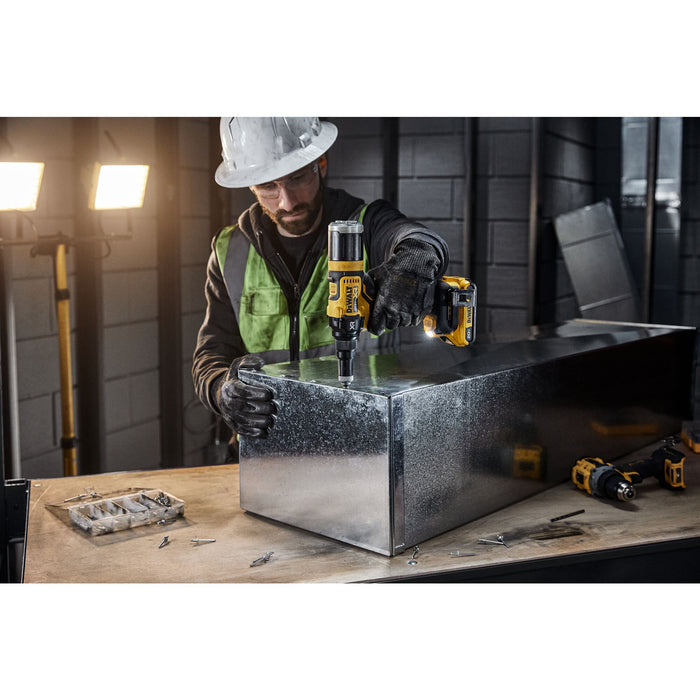

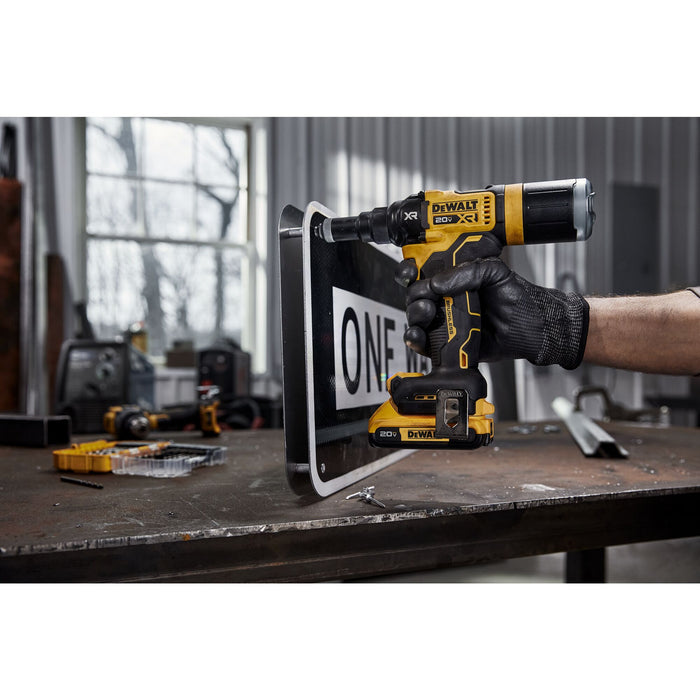

Install aluminum, steel, and stainless steel blind rivets up to 3/16" with the 20V MAX* XR® Brushless Cordless 3/16" Rivet Tool. The brushless motor delivers up to 2,100 lbf of pulling force and has the capability to pull 800 rivets per charge**. Other features like a a tool-free nose piece change and on-board nose piece storage help to maximize productivity on the jobsite.

Specifications:

Has Tool-Free Nose Piece Change?
Yes
Product Height [in]
8.6
Product Height [mm]
219
Product Length [in]
10.5
Product Length [mm]
268
Product Weight [g]
1650
Product Weight [Kg]
1.65
Product Weight [oz]
57.6
Pulling Force [lbf]
2100
Pulling Force [N]
10000
Stroke Length [in]
0.98
Stroke Length [mm]
25

Additional Feature

  • Capable of pulling aluminum, steel, and stainless steel blind rivets
  • On-board mandrel collector designed to collect and stores loose mandrels
  • 0.98" Stroke length for fastening rivets in one stroke
  • Brighten work area with an integrated led work light for enhanced visibility in dimly lit areas
  • Brushless motor delivers up to 2,100 lbf of pulling force† for fastening rivets, including those made of stainless steel.
  • 800 rivets per charge** to maximize productivity on the jobsite
  • Designed for ease of use with tool-free nose piece changes and on-board nose piece storage
  • Compatible WITH MUTIPLE SIZE RIVETS including 3/32", 1/8", 5/32", and 3/16" rivets

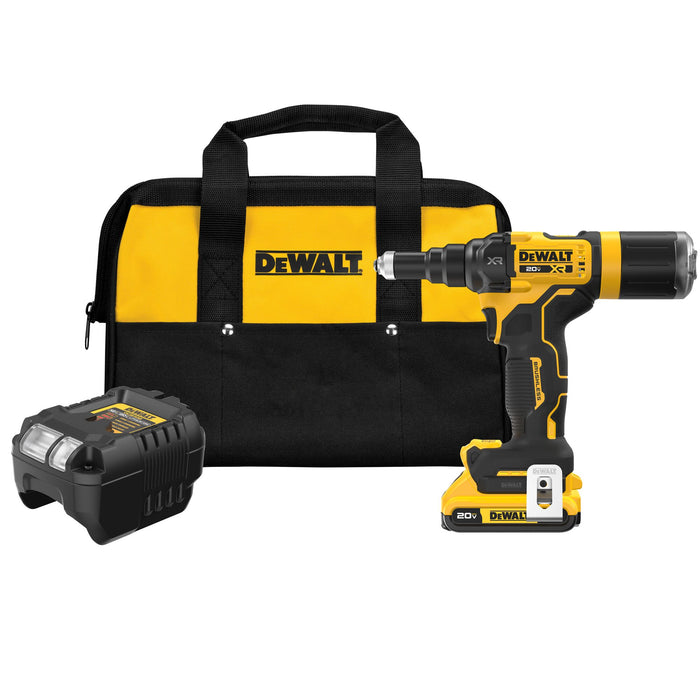

Included

  • (1) DCF403 3/16 in. Rivet tool
  • (1) Kit bag
  • (1) DCB203 20V MAX* 2Ah Battery
  • (1) Charger
  • (1) 3/32 in. Nose piece
  • (1) 1/8 in. Nose piece
  • (1) 5/32 in. Nose piece
  • (1) 3/16 in. Nose piece
  • (1) Replacement jaw set
  • (1) Belt hook

Warranty

   3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed
